DC fast · floor-standing

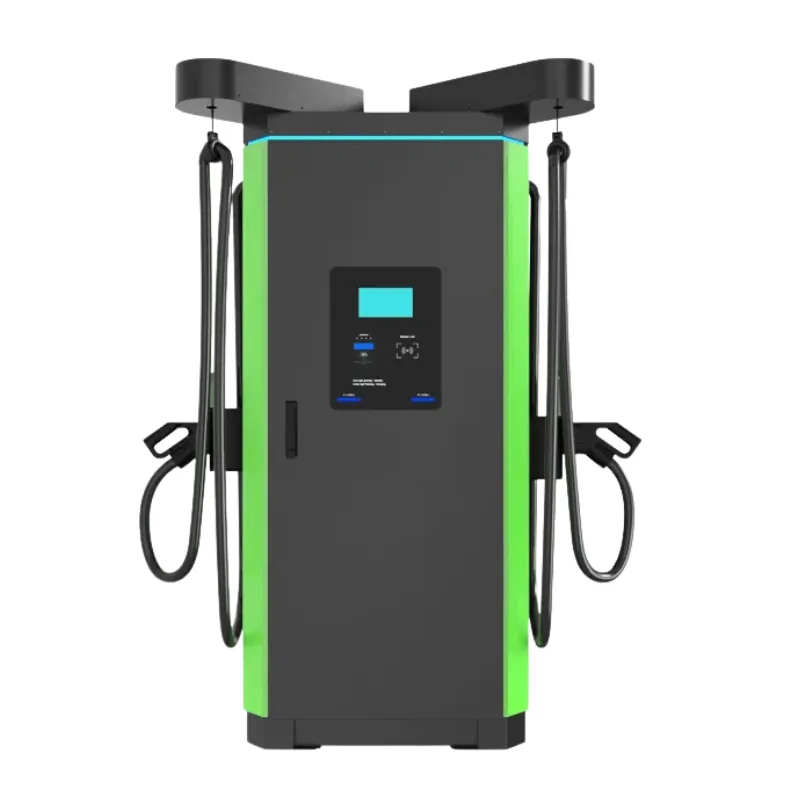

UC Series
60–360 kW
Two guns, one cabinet, power shared by demand — for highway hubs and high-traffic sites.
CCS2 + CCS2 / CHAdeMO (EU) · CCS1 + CCS1 / CHAdeMO / NACS (NA)
Specs & options of UC Series →Since 2012 · For charge point operators & site investors
DC fast chargers built for sites that have to earn.
From 20 kW wall units to 360 kW dual-gun cabinets, plus 2 × 22 kW commercial AC — configured for your grid, connector standard and payment setup, with the data you need to plan every bay.
One supplier across the power range
- 22 kW
- 60 kW
- 80 kW
- 180 kW
- 360 kW
- DC output range
- 20–360 kW
- plus OCPP 1.6J, Ethernet, 4G, Wi-Fi
- OCPP 2.0.1
- rated operating temperature
- +55 °C
- CCS2 and CCS1 / NACS builds
- EU + US
Charger range
Chargers sorted by the job they do
Every DC series is offered in a CCS2 (Europe) build, and the flagship also in a 480 V CCS1 / NACS build for North America. Spec tables list input current, output range and protection data on each series page. All chargers →
DC compact

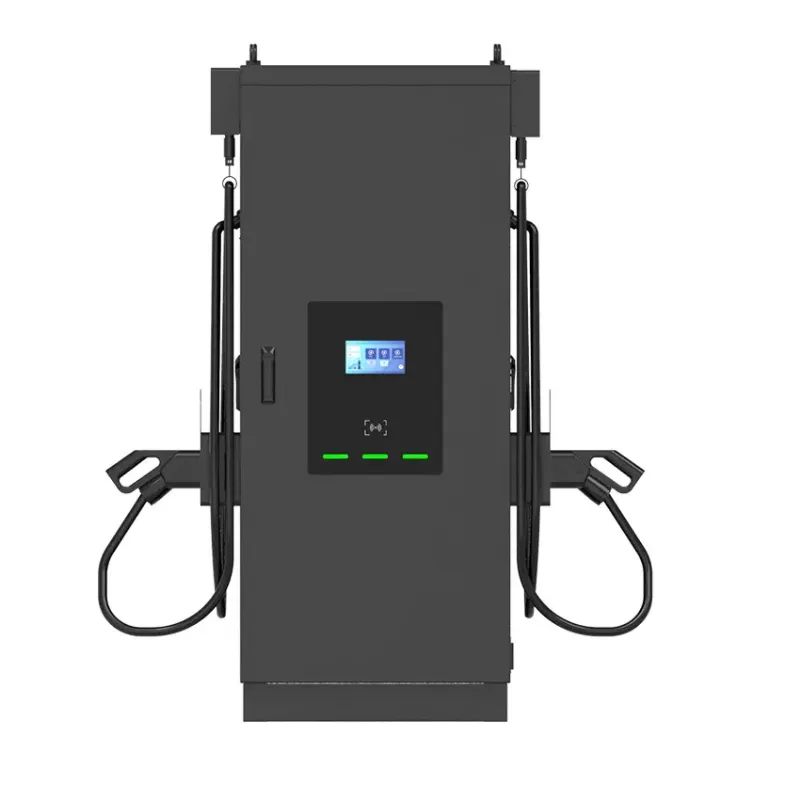

CC Series
120–180 kW
High DC power in a small footprint — made for retail car parks and urban hubs.
CCS2 + CCS2 · CCS2 + CHAdeMO
Specs & options of CC Series →DC wallbox / pedestal

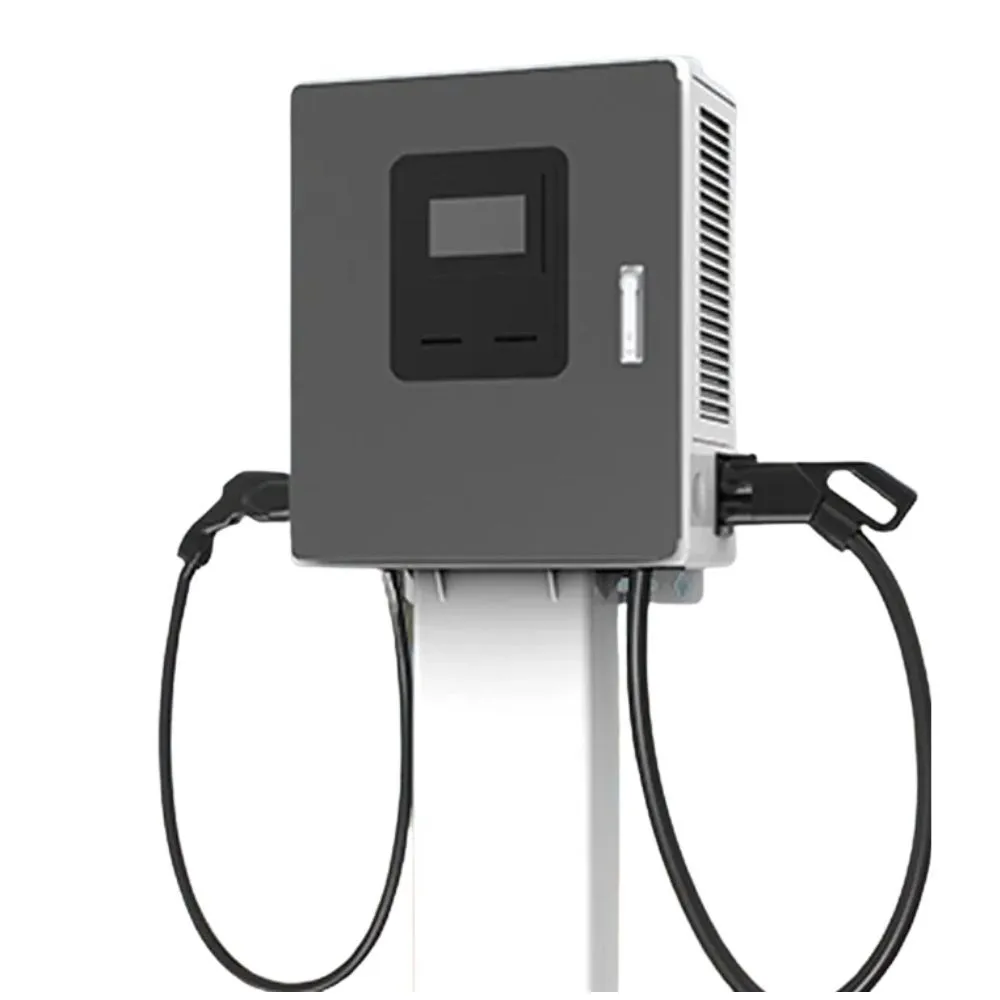

HC Series
20–60 kW
Wall- or pedestal-mounted DC charging from 20 to 60 kW, one or two CCS2 guns.
CCS2 · CCS2 × 2
Specs & options of HC Series →DC wallbox / pedestal

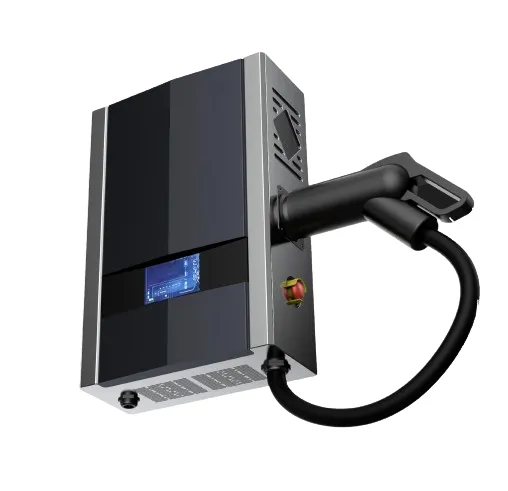

SC Series
15–30 kW
A slim wall-mounted DC unit, 15–30 kW, one CCS1 or CCS2 gun.
CCS2 · CCS1
Specs & options of SC Series →DC mobile

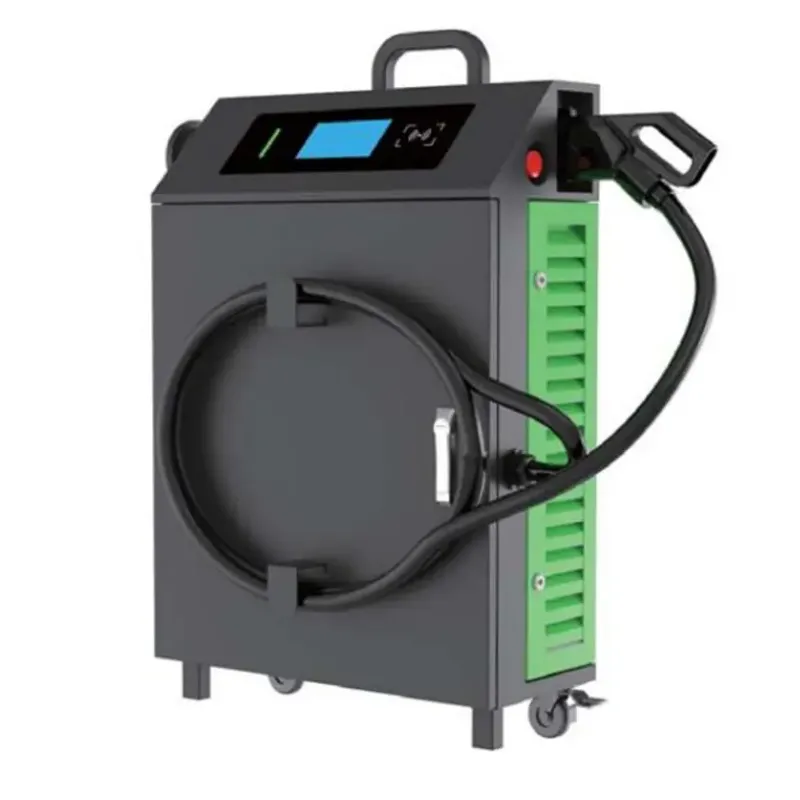

MC Series
20–80 kW
DC charging on wheels, 20–80 kW — for service fleets, workshops and temporary sites.
CCS2
Specs & options of MC Series →AC commercial

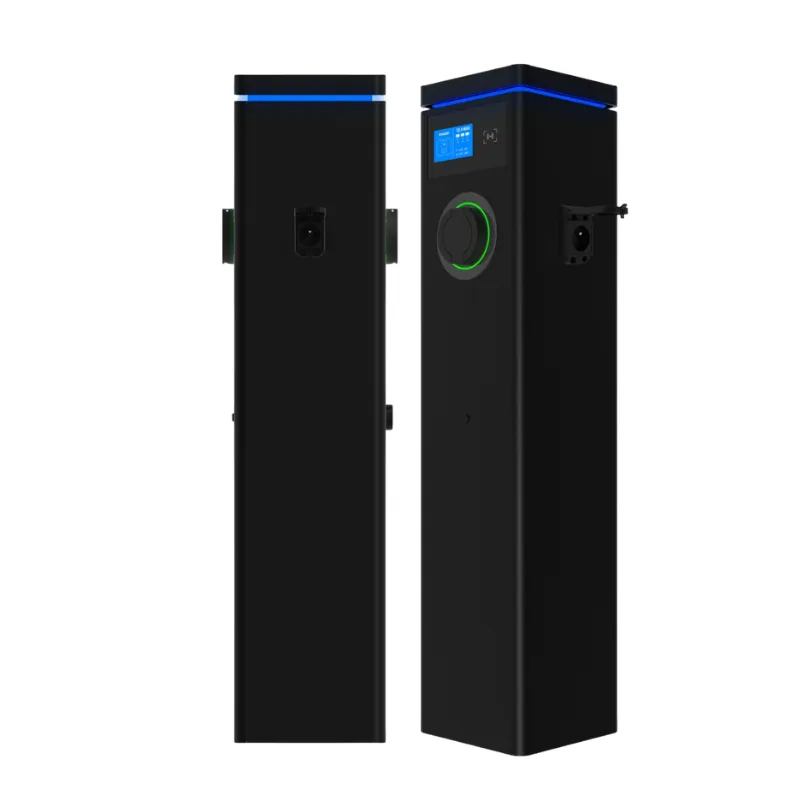

CPO Series
2 × 3.7–22 kW
Two Type 2 points per unit, up to 22 kW each — wall or pedestal, with card payment options.
Type 2 socket or tethered cable × 2
Specs & options of CPO Series →AC wallbox

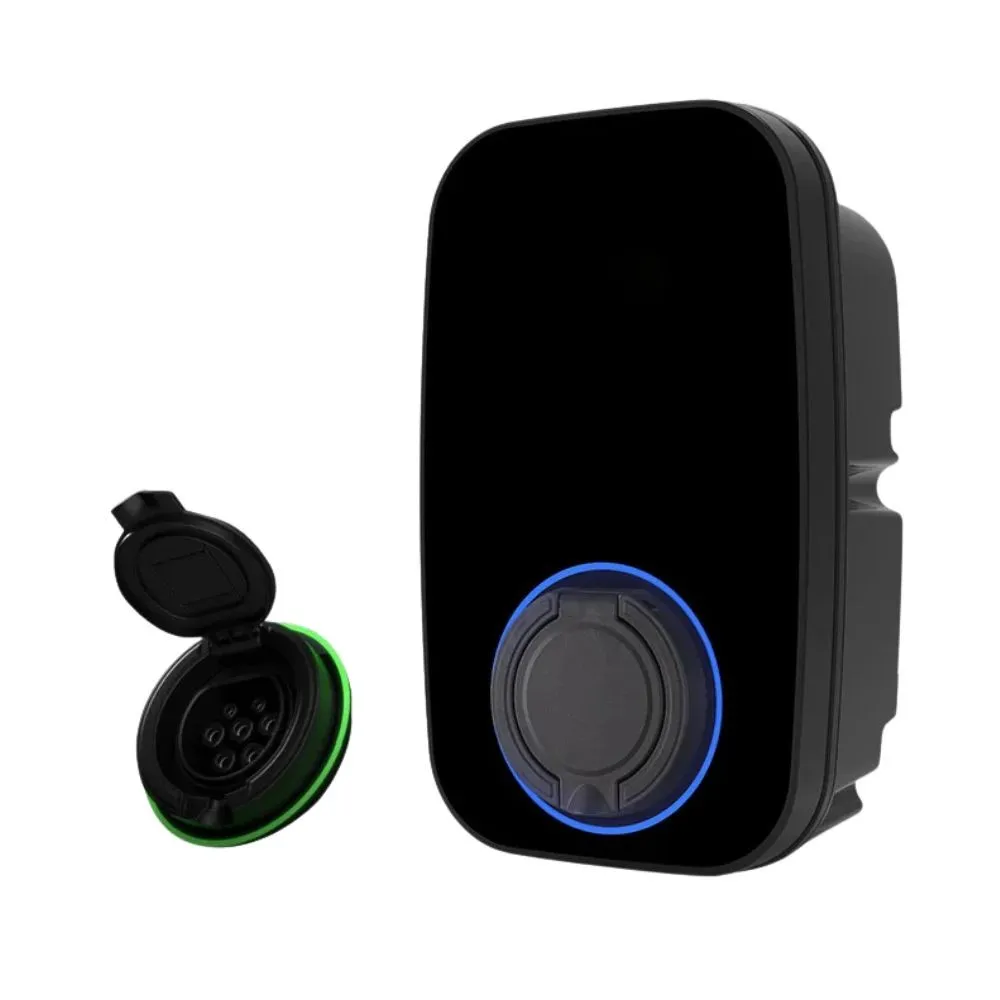

FE Series
3.7–22 kW
Single-point Type 2 wallbox, 3.7–22 kW, with load balancing and OCPP options.
Type 2 socket · Type 2 tethered cable
Specs & options of FE Series →AC portable

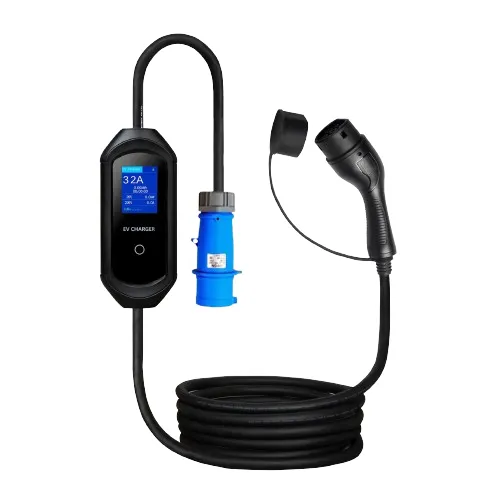

AM Series
3.7–22 kW
Plug-in portable charger with LCD control box, adjustable current and IP65.
Type 2 · Schuko / UK / CEE plug
Specs & options of AM Series →
Plan before you buy
Size the site before you size the order
The same rough numbers our engineers use when they first look at a project. Treat the results as estimates — we check them against your grid data before quoting.
Charging time calculator
52.5 kWh added
Estimate = energy added ÷ (lower of charger and vehicle peak power × 0.8). Real sessions depend on battery temperature and the vehicle's charging curve, and slow down sharply above 80 %.
Selection guide
Vehicles stop for less than 30 minutes
Highway and corridor stops need high power per bay. A 180–360 kW cabinet with two guns shares power between bays as cars arrive.
Vehicles stay 30–90 minutes
Retail parking, restaurants and urban hubs: 120–180 kW compact cabinets, or 40–60 kW wall units where grid capacity is tight.
Vehicles stay for hours or overnight
Workplaces, hotels and depots: dual-port AC chargers cover most bays; add a DC unit for vehicles that must leave quickly.
The charger has to go to the vehicle
Roadside assistance, fleet yards without fixed bays and temporary events: a wheeled DC unit from 20 to 80 kW, or a portable AC charger that plugs into any suitable socket.
Site types
Recommended setups by site type
Starting points, not fixed packages. Dwell time and grid capacity decide the final mix. All solutions →
- 01

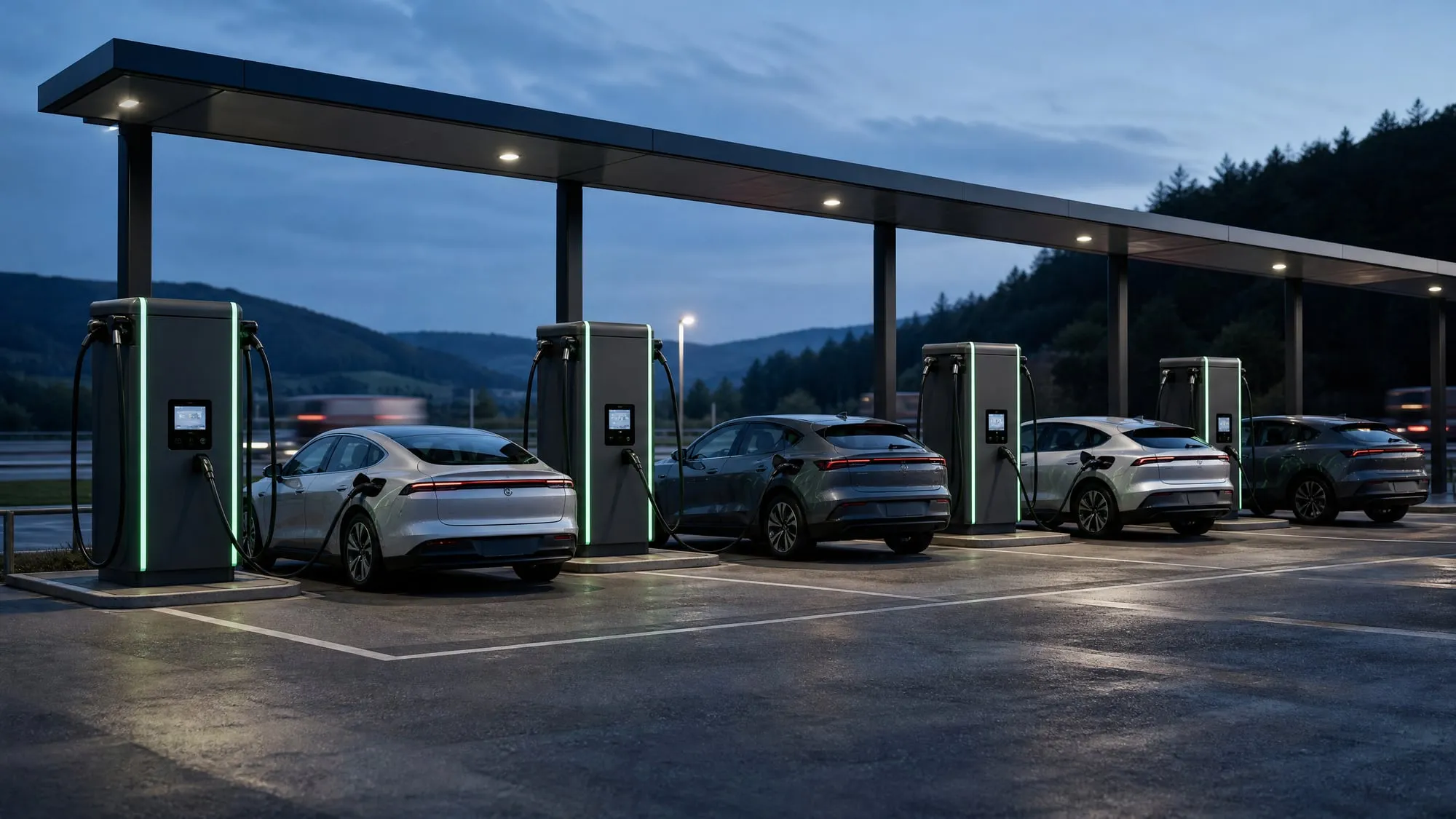

Highway & corridor hubs
Short stops where drivers expect to leave within half an hour. Power per bay matters more than bay count.
→ 180–360 kW DC, two guns per cabinet
- 02

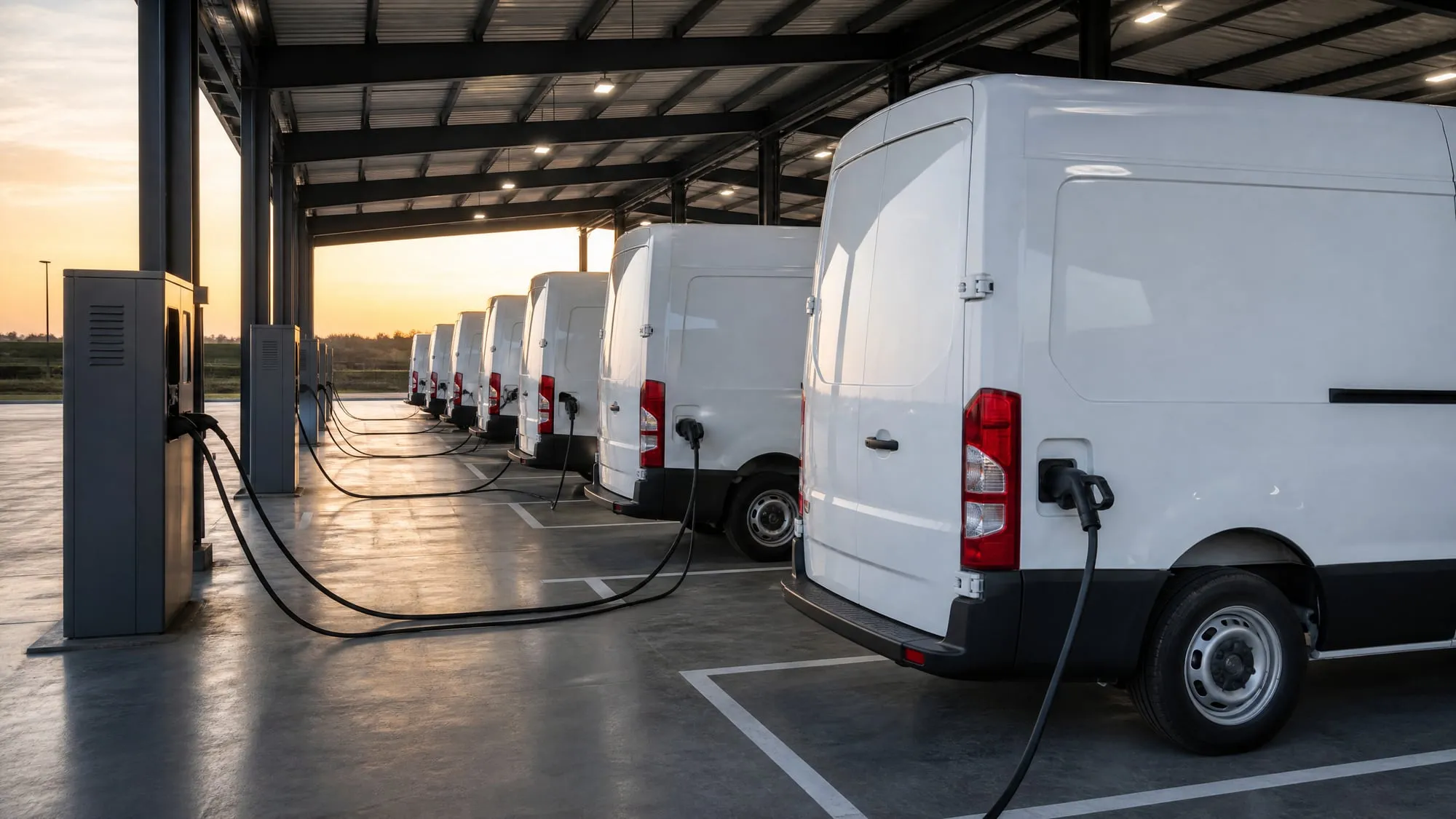

Fleet depots
Vans, taxis and buses that return to base. Most energy goes in overnight; a few vehicles need a fast top-up between shifts.
→ AC for most bays + 60–120 kW DC buffer
- 03

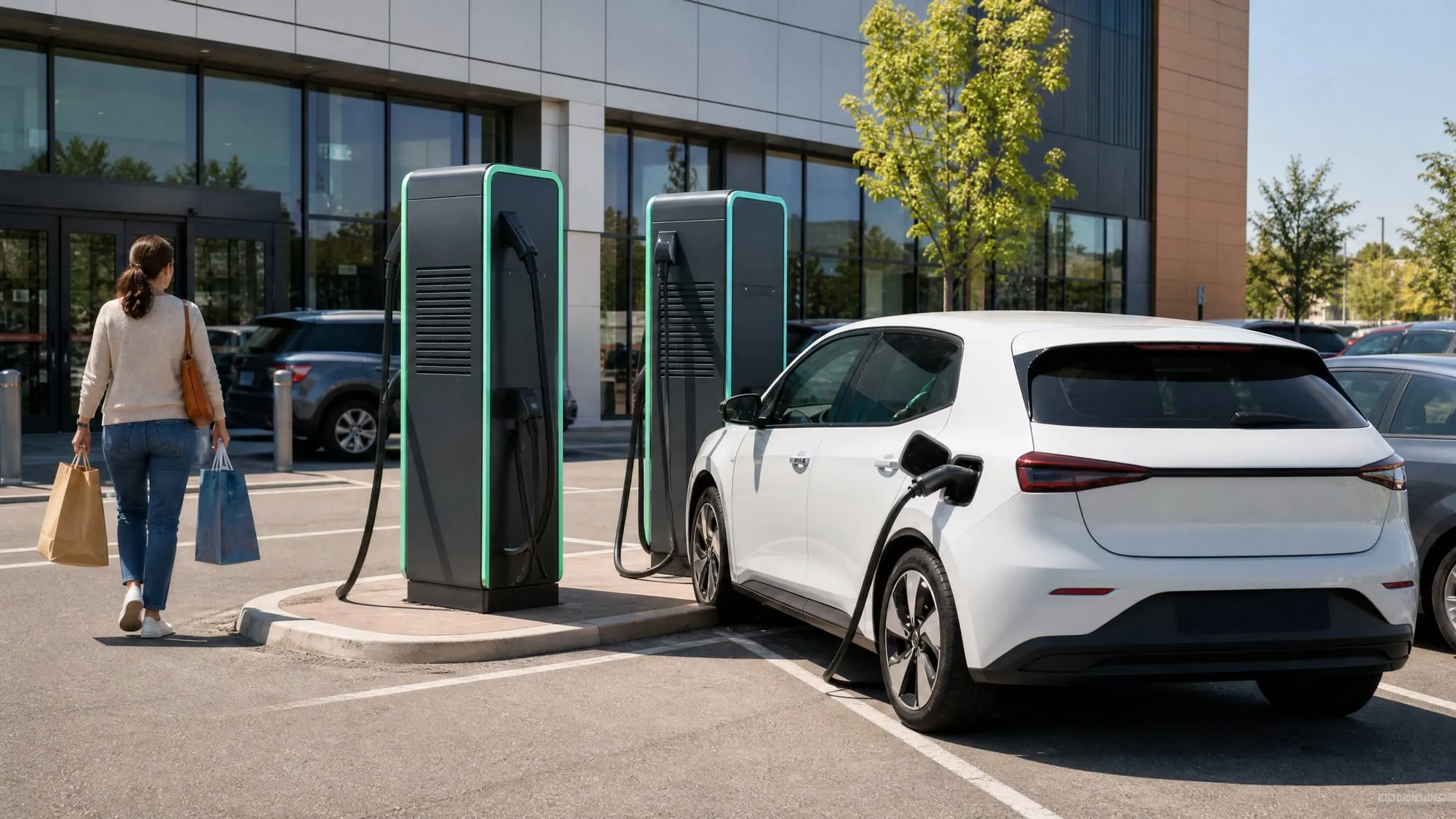

Retail & destination parking
Shopping centres, restaurants and urban hubs where visitors stay 30 to 90 minutes.
→ 120–180 kW compact DC or 40–60 kW DC wallbox
- 04

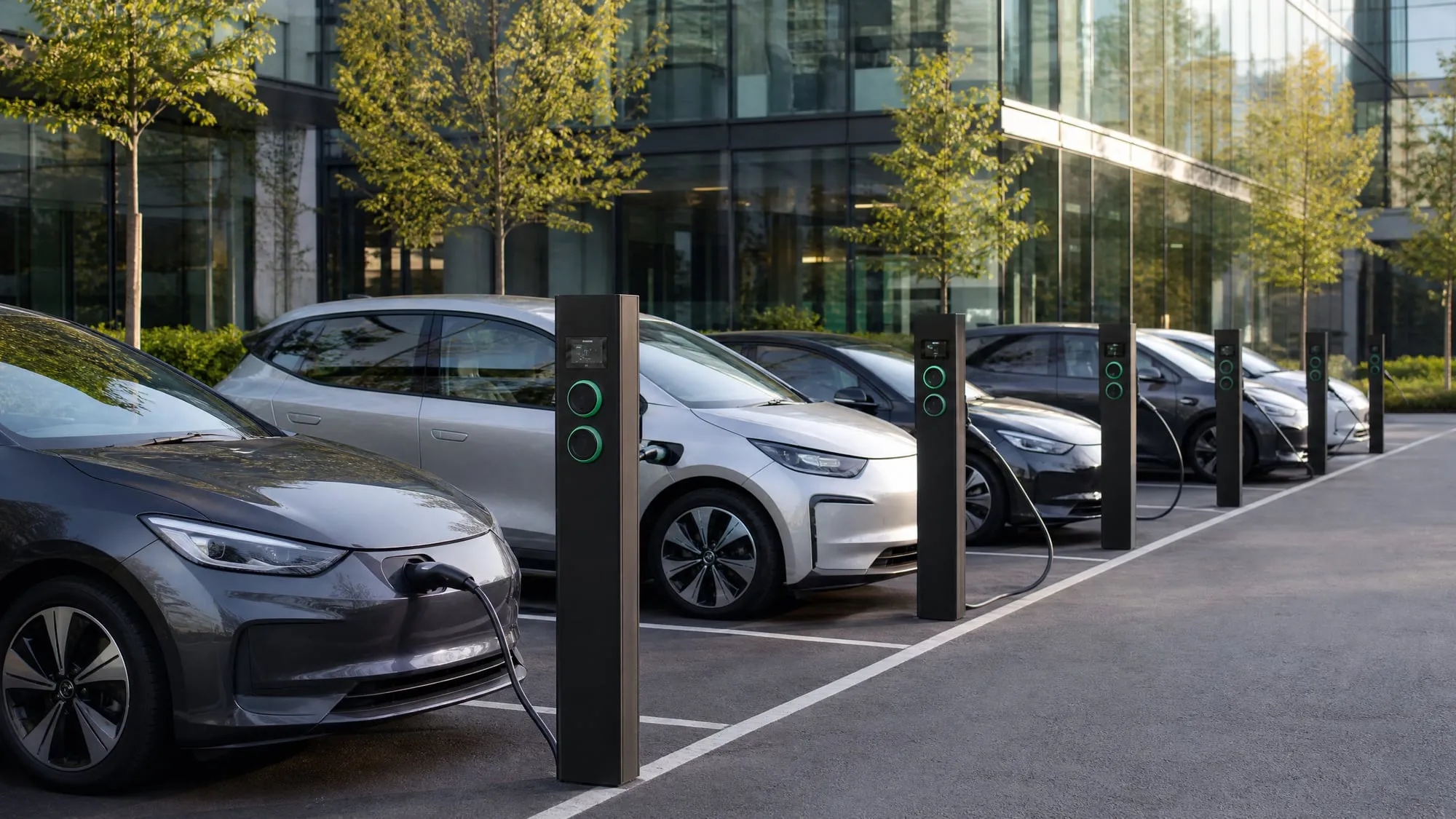

Workplaces & hotels
Cars parked for a working day or overnight. Many bays at moderate power beat a few fast chargers.
→ 2 × 7.4–22 kW dual-port AC
- 05

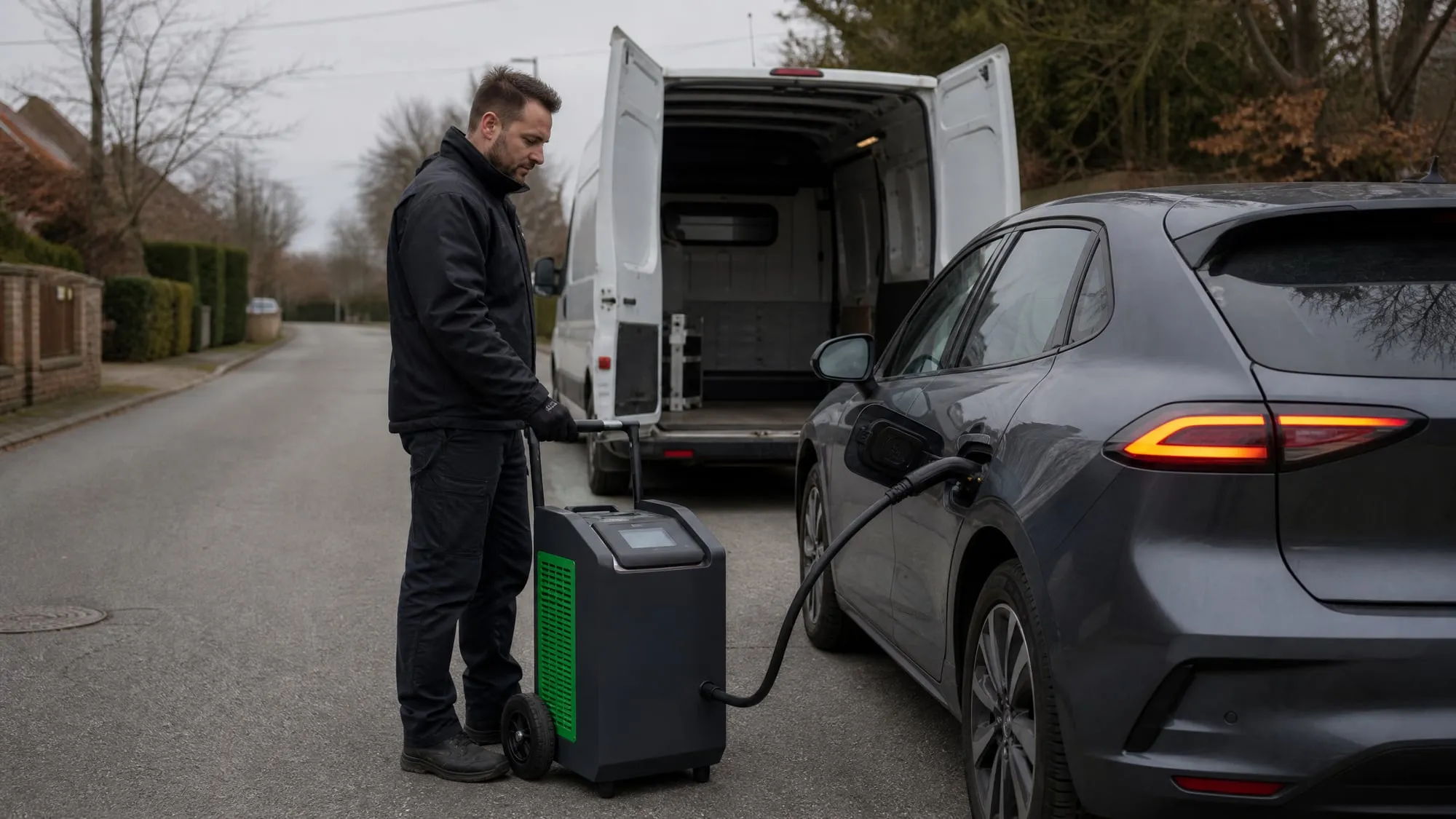

Roadside & mobile service
Breakdown assistance, yards without fixed bays, events and temporary sites where the charger goes to the vehicle.
→ 20–80 kW mobile DC on wheels
Why EVCSTAR
What you get from EVCSTAR
Specs you can plan with
Input current per phase, output voltage range and protection data are published for every model, so your electrical engineer can size the connection before asking us.
One back-end, any charger
All chargers speak OCPP 1.6J and OCPP 2.0.1 over Ethernet, with 4G and Wi-Fi options — they join the CSMS you already use.
Built for hot sites
Rated to +55 °C ambient, with IP54 / IK10 DC cabinets and IP55 / IK10 commercial AC units for exposed car parks and forecourts.
EU and North American builds
CCS2 and Type 2 for Europe; 480 V CCS1 and NACS for North America on the flagship DC series. One supplier for both markets.
From site brief to energised bays
- 01
Site brief
You send bay count, grid capacity, market and how long vehicles stay. We ask what is missing.
- 02
Configuration
We propose the power mix, connector set, payment and OCPP options, with spec sheets for each unit.
- 03
Production
Units are built to the agreed configuration, with OEM branding and housing colour if ordered.
- 04
Delivery & support
12-month warranty. Installation documents go to your installer; our engineers support commissioning and back-end connection remotely.
FAQ
Frequently asked questions
Do you supply both European and North American versions?
Yes. DC chargers are built with CCS2 (optionally CCS2 + CHAdeMO) for Europe. The UC flagship series also has a 480 V North American build with CCS1, NACS or CHAdeMO connectors.
Will the chargers work with our charge point management system?
Every charger supports OCPP 1.6J and OCPP 2.0.1. DC units connect over Ethernet as standard, with integrated 4G and Wi-Fi as options.
How do two charging guns share power on one DC charger?
The UC and HC cabinets split their total output between the two connectors automatically. One car can take the full output, or two cars share it as their batteries demand.
Which payment and authentication options are available?
DC chargers support RFID and QR-code start as standard, with a POS card terminal as an option. Commercial AC chargers offer RFID, app QR-code payment and an optional Payter card terminal.
Can you put our brand on the chargers?
Yes. OEM branding and ODM changes (housing colour, screen content, connector and communication options) are available for partner orders.
What warranty do EVCSTAR chargers have?
Every charger has a 12-month warranty from delivery. Faults are diagnosed remotely, replacement parts are free within the warranty, and technical support continues for the life of the charger.
Tell us about your site
Number of bays, grid connection size, target market and timeline are enough to start. We reply with a recommended configuration and spec sheets.
